MC-128512Certain blocks on chunk borders cause many blocks in the same chunk to be updated when upgrading from 1.12.2
After doing some more testing on MC-128509, I've found that the updates are not exclusive to portals.
This is a problem because it can lead to things being triggered/broken that shouldn't be.
To reproduce
- Download FloatingSand.zip
, which contains stairs over floating sand in all possible positions. - Load it in Minecraft 1.12.2, and observe the totally legitimate floating sand.
- Load it in Minecraft 18w15a (or another 1.13 snapshot), and observe that some of the sand has fallen (note that on lazy (far away) chunks, it will fall on top of the slab instead of breaking).
Alternatively:
- Download UpdateDetector.zip, which contains a new form of update detector.
- Load it in 1.12.2, and observe that nothing has exploded.
- Load it in 1.13, and observe an explosion.
Blocks
The following blocks are known to do it:
- Stairs (all varieties)
- Cobblestone walls
- Fence gates
- Glass panes
- Vines
- Redstone
- Redstone Repeaters
- Fire
- Tripwire
- Chests
The following blocks are known not to do it:
- Stone
- Anvils
- Carpet
- Ladders
- Banners (only tested floor)
- Signs (both wall and floor)
- Doors
- Leaves
- End rods
- Buttons
- Observers
- Daylight detector
- Trapdoors
- Droppers
The pattern
This only happens for blocks on chunk borders. The blocks that are updated vary by the position: if it's on the edge of a chunk, all blocks on that edge (for all Y values) are updated; if it's on the corner all blocks on that corner are updated. Blocks not on an edge/corner are not updated at all.
Call stacks
Obtained via JDB; these are copied from MC-128509.
Obf, as found in 18w15a:
> stop at bct:109 Set breakpoint bct:109 > Breakpoint hit: "thread=Server thread", bct.a(), line=109 bci=0 Server thread[1] where [1] bct.a (SourceFile:109) [2] bhj.a (SourceFile:244) [3] bjc$b$1.a (SourceFile:210) [4] bjc.a (SourceFile:155) [5] bjc.a (SourceFile:147) [6] bjc.a (SourceFile:58) [7] biv.B (SourceFile:1,043) [8] biv$$Lambda$905.848302274.run (null) [9] java.util.concurrent.Executors$RunnableAdapter.call (Executors.java:511) [10] java.util.concurrent.FutureTask.run (FutureTask.java:266) [11] k.a (SourceFile:146) [12] net.minecraft.server.MinecraftServer.w (SourceFile:671) [13] net.minecraft.server.MinecraftServer.v (SourceFile:627) [14] dal.v (SourceFile:155) [15] net.minecraft.server.MinecraftServer.run (SourceFile:532) [16] java.lang.Thread.run (Thread.java:748)
And as found in 18w14b:
> stop at bcj:109 Set breakpoint bcj:109 > Breakpoint hit: "thread=WorldGen-Worker-3", bcj.a(), line=109 bci=0 WorldGen-Worker-3[1] where [1] bcj.a (SourceFile:109) [2] bgy.a (SourceFile:244) [3] bir$b$1.a (SourceFile:210) [4] bir.a (SourceFile:155) [5] bir.a (SourceFile:147) [6] bir.a (SourceFile:58) [7] bik.B (SourceFile:1,044) [8] bik.G (SourceFile:1,148) [9] se.a (SourceFile:33) [10] se.put (SourceFile:11) [11] it.unimi.dsi.fastutil.longs.Long2ObjectMaps$SynchronizedMap.put (Long2ObjectMaps.java:371) [12] sg.a (SourceFile:207) [13] sg$$Lambda$937.1969878285.apply (null) [14] java.util.concurrent.CompletableFuture.uniApply (CompletableFuture.java:602) [15] java.util.concurrent.CompletableFuture$UniApply.tryFire (CompletableFuture.java:577) [16] java.util.concurrent.CompletableFuture.postComplete (CompletableFuture.java:474) [17] java.util.concurrent.CompletableFuture.postFire (CompletableFuture.java:561) [18] java.util.concurrent.CompletableFuture$UniCompose.tryFire (CompletableFuture.java:929) [19] java.util.concurrent.CompletableFuture$Completion.exec (CompletableFuture.java:443) [20] java.util.concurrent.ForkJoinTask.doExec (ForkJoinTask.java:289) [21] java.util.concurrent.ForkJoinPool$WorkQueue.runTask (ForkJoinPool.java:1,056) [22] java.util.concurrent.ForkJoinPool.runWorker (ForkJoinPool.java:1,692) [23] java.util.concurrent.ForkJoinWorkerThread.run (ForkJoinWorkerThread.java:157)
Notes
The first affected snapshot is 17w47b (probably a is affected too; 17w46a is not), which was the snapshot that introduced the flattening.
Linked Issues
![[Mod] Pokechu22](../../../data/avatars/users/92931.png){kind=small}
Created Issue:
Certain blocks on chunk borders cause many blocks in the same chunk to be updated when upgrading from 1.12.2
After doing some more testing on
MC-128509, I've found that the updates are not exclusive to portals.This is a problem because it can lead to things being triggered/broken that shouldn't be.
To reproduce
- Download FloatingSand.zip
- Load it in Minecraft 1.12.2, and observe the totally legitimate floating sand.
- Load it in Minecraft 18w15a (or another 1.13 snapshot), and observe that some of the sand has fallen (note that on lazy (far away) chunks, it will fall on top of the slab instead of breaking).
Alternatively:
- Download UpdateDetector.zip
- Load it in 1.12.2, and observe that nothing has exploded.
- Load it in 1.13, and observe an explosion.
Blocks
The following blocks are known to do it:
- Stairs (all varieties)
- Cobblestone walls
- Fence gates
- Glass panes
- Vines
- Redstone
- Redstone Repeaters
- Fire
- Tripwire
- Chests
The following blocks are known not to do it:
- Stone
- Anvils
- Carpet
- Ladders
- Banners (only tested floor)
- Signs (both wall and floor)
- Doors
- Leaves
- End rods
- Buttons
- Observers
- Daylight detector
- Trapdoors
- Droppers
The pattern
This only happens for blocks on chunk borders. The blocks that are updated vary by the position: if it's on the edge of a chunk, all blocks on that edge (for all Y values) are updated; if it's on the corner all blocks on that corner are updated. Blocks not on an edge/corner are not updated at all.
After doing some more testing on
MC-128509, I've found that the updates are not exclusive toportals.This is a problem because it can lead to things being triggered/broken that shouldn't be.
To reproduce
- Download FloatingSand.zip
- Load it in Minecraft 1.12.2, and observe the totally legitimate floating sand.
- Load it in Minecraft 18w15a (or another 1.13 snapshot), and observe that some of the sand has fallen (note that on lazy (far away) chunks, it will fall on top of the slab instead of breaking).
Alternatively:
- Download UpdateDetector.zip
- Load it in 1.12.2, and observe that nothing has exploded.
- Load it in 1.13, and observe an explosion.
Blocks
The following blocks are known to do it:
- Stairs (all varieties)
- Cobblestone walls
- Fence gates
- Glass panes
- Vines
- Redstone
- Redstone Repeaters
- Fire
- Tripwire
- Chests
The following blocks are known not to do it:
- Stone
- Anvils
- Carpet
- Ladders
- Banners (only tested floor)
- Signs (both wall and floor)
- Doors
- Leaves
- End rods
- Buttons
- Observers
- Daylight detector
- Trapdoors
- Droppers
The pattern
This only happens for blocks on chunk borders. The blocks that are updated vary by the position: if it's on the edge of a chunk, all blocks on that edge (for all Y values) are updated; if it's on the corner all blocks on that corner are updated. Blocks not on an edge/corner are not updated at all.
discovered while testing
After doing some more testing on
MC-128509, I've found that the updates are not exclusive to portals.This is a problem because it can lead to things being triggered/broken that shouldn't be.
To reproduce
- Download FloatingSand.zip
- Load it in Minecraft 1.12.2, and observe the totally legitimate floating sand.
- Load it in Minecraft 18w15a (or another 1.13 snapshot), and observe that some of the sand has fallen (note that on lazy (far away) chunks, it will fall on top of the slab instead of breaking).
Alternatively:
- Download UpdateDetector.zip
- Load it in 1.12.2, and observe that nothing has exploded.
- Load it in 1.13, and observe an explosion.
Blocks
The following blocks are known to do it:
- Stairs (all varieties)
- Cobblestone walls
- Fence gates
- Glass panes
- Vines
- Redstone
- Redstone Repeaters
- Fire
- Tripwire
- Chests
The following blocks are known not to do it:
- Stone
- Anvils
- Carpet
- Ladders
- Banners (only tested floor)
- Signs (both wall and floor)
- Doors
- Leaves
- End rods
- Buttons
- Observers
- Daylight detector
- Trapdoors
- Droppers
The pattern
This only happens for blocks on chunk borders. The blocks that are updated vary by the position: if it's on the edge of a chunk, all blocks on that edge (for all Y values) are updated; if it's on the corner all blocks on that corner are updated. Blocks not on an edge/corner are not updated at all.
Notes
The first affected snapshot is 17w47b (probably a is affected too; 17w46a is not), which was the snapshot that introduced the flattening.
After doing some more testing on
MC-128509, I've found that the updates are not exclusive to portals.This is a problem because it can lead to things being triggered/broken that shouldn't be.
To reproduce
- Download FloatingSand.zip
- Load it in Minecraft 1.12.2, and observe the totally legitimate floating sand.
- Load it in Minecraft 18w15a (or another 1.13 snapshot), and observe that some of the sand has fallen (note that on lazy (far away) chunks, it will fall on top of the slab instead of breaking).
Alternatively:
- Download UpdateDetector.zip
- Load it in 1.12.2, and observe that nothing has exploded.
- Load it in 1.13, and observe an explosion.
Blocks
The following blocks are known to do it:
- Stairs (all varieties)
- Cobblestone walls
- Fence gates
- Glass panes
- Vines
- Redstone
- Redstone Repeaters
- Fire
- Tripwire
- Chests
The following blocks are known not to do it:
- Stone
- Anvils
- Carpet
- Ladders
- Banners (only tested floor)
- Signs (both wall and floor)
- Doors
- Leaves
- End rods
- Buttons
- Observers
- Daylight detector
- Trapdoors
- Droppers
The pattern
This only happens for blocks on chunk borders. The blocks that are updated vary by the position: if it's on the edge of a chunk, all blocks on that edge (for all Y values) are updated; if it's on the corner all blocks on that corner are updated. Blocks not on an edge/corner are not updated at all.
NotesThe first affected snapshot is 17w47b (probably a is affected too; 17w46a is not), which was the snapshot that introduced the flattening.
After doing some more testing on
MC-128509, I've found that the updates are not exclusive to portals.This is a problem because it can lead to things being triggered/broken that shouldn't be.
To reproduce
- Download FloatingSand.zip
- Load it in Minecraft 1.12.2, and observe the totally legitimate floating sand.
- Load it in Minecraft 18w15a (or another 1.13 snapshot), and observe that some of the sand has fallen (note that on lazy (far away) chunks, it will fall on top of the slab instead of breaking).
Alternatively:
- Download UpdateDetector.zip
- Load it in 1.12.2, and observe that nothing has exploded.
- Load it in 1.13, and observe an explosion.
Blocks
The following blocks are known to do it:
- Stairs (all varieties)
- Cobblestone walls
- Fence gates
- Glass panes
- Vines
- Redstone
- Redstone Repeaters
- Fire
- Tripwire
- Chests
The following blocks are known not to do it:
- Stone
- Anvils
- Carpet
- Ladders
- Banners (only tested floor)
- Signs (both wall and floor)
- Doors
- Leaves
- End rods
- Buttons
- Observers
- Daylight detector
- Trapdoors
- Droppers
The pattern
This only happens for blocks on chunk borders. The blocks that are updated vary by the position: if it's on the edge of a chunk, all blocks on that edge (for all Y values) are updated; if it's on the corner all blocks on that corner are updated. Blocks not on an edge/corner are not updated at all.
Call stacks
Obtained via JDB; these are copied from
MC-128509.Obf, as found in 18w15a:
> stop at bct:109 Set breakpoint bct:109 > Breakpoint hit: "thread=Server thread", bct.a(), line=109 bci=0 Server thread[1] where [1] bct.a (SourceFile:109) [2] bhj.a (SourceFile:244) [3] bjc$b$1.a (SourceFile:210) [4] bjc.a (SourceFile:155) [5] bjc.a (SourceFile:147) [6] bjc.a (SourceFile:58) [7] biv.B (SourceFile:1,043) [8] biv$$Lambda$905.848302274.run (null) [9] java.util.concurrent.Executors$RunnableAdapter.call (Executors.java:511) [10] java.util.concurrent.FutureTask.run (FutureTask.java:266) [11] k.a (SourceFile:146) [12] net.minecraft.server.MinecraftServer.w (SourceFile:671) [13] net.minecraft.server.MinecraftServer.v (SourceFile:627) [14] dal.v (SourceFile:155) [15] net.minecraft.server.MinecraftServer.run (SourceFile:532) [16] java.lang.Thread.run (Thread.java:748)And as found in 18w14b:
> stop at bcj:109 Set breakpoint bcj:109 > Breakpoint hit: "thread=WorldGen-Worker-3", bcj.a(), line=109 bci=0 WorldGen-Worker-3[1] where [1] bcj.a (SourceFile:109) [2] bgy.a (SourceFile:244) [3] bir$b$1.a (SourceFile:210) [4] bir.a (SourceFile:155) [5] bir.a (SourceFile:147) [6] bir.a (SourceFile:58) [7] bik.B (SourceFile:1,044) [8] bik.G (SourceFile:1,148) [9] se.a (SourceFile:33) [10] se.put (SourceFile:11) [11] it.unimi.dsi.fastutil.longs.Long2ObjectMaps$SynchronizedMap.put (Long2ObjectMaps.java:371) [12] sg.a (SourceFile:207) [13] sg$$Lambda$937.1969878285.apply (null) [14] java.util.concurrent.CompletableFuture.uniApply (CompletableFuture.java:602) [15] java.util.concurrent.CompletableFuture$UniApply.tryFire (CompletableFuture.java:577) [16] java.util.concurrent.CompletableFuture.postComplete (CompletableFuture.java:474) [17] java.util.concurrent.CompletableFuture.postFire (CompletableFuture.java:561) [18] java.util.concurrent.CompletableFuture$UniCompose.tryFire (CompletableFuture.java:929) [19] java.util.concurrent.CompletableFuture$Completion.exec (CompletableFuture.java:443) [20] java.util.concurrent.ForkJoinTask.doExec (ForkJoinTask.java:289) [21] java.util.concurrent.ForkJoinPool$WorkQueue.runTask (ForkJoinPool.java:1,056) [22] java.util.concurrent.ForkJoinPool.runWorker (ForkJoinPool.java:1,692) [23] java.util.concurrent.ForkJoinWorkerThread.run (ForkJoinWorkerThread.java:157)Notes
The first affected snapshot is 17w47b (probably a is affected too; 17w46a is not), which was the snapshot that introduced the flattening.
relates to
![[Mod] redstonehelper](../../../data/avatars/users/10122.svg){kind=small}
![[Mojang] Georgii Gavrichev](../../../data/avatars/users/22428.png){kind=small}
[Mojang] Georgii GavrichevIn certain cases, portals on the X axis that were fine in 1.12.2 and are actually still fine in 1.13 will break during the upgrade.
To reproduce
- Download the attached world, which contains many different portal setups.
- Load it in Minecraft 1.12.2, and confirm that all of the portals are lit.
- Load it in Minecraft 18w15a (or another 1.13 snapshot), and confirm that portals are no longer lit.
Affected conditions
This only appears to affect portals on the X axis (ones with the axis: x value for the block state). It also only appears to affect portals on the chunk border. The problematic block may be at any y value, and any x value in the same chunk other than the very edge; the z value appears to need to match the portal (not all positions have been checked). The simplest case is to put 4 stairs on top of the portal.
Affected blocks:
- Stairs (all varieties)
- Cobblestone walls
- Fence gates
- Glass panes
- Vines
- Redstone
- Redstone Repeaters
- Fire
- Tripwire
- Chests
Non-affected blocks:
- Stone
- Anvils
- Carpet
- Ladders
- Banners (only tested floor)
- Signs (both wall and floor)
- Doors
- Leaves
- End rods
- Buttons
- Observers
- Daylight detector
- Trapdoors
- Droppers
Special cases
Some special things that can happen with this bug:

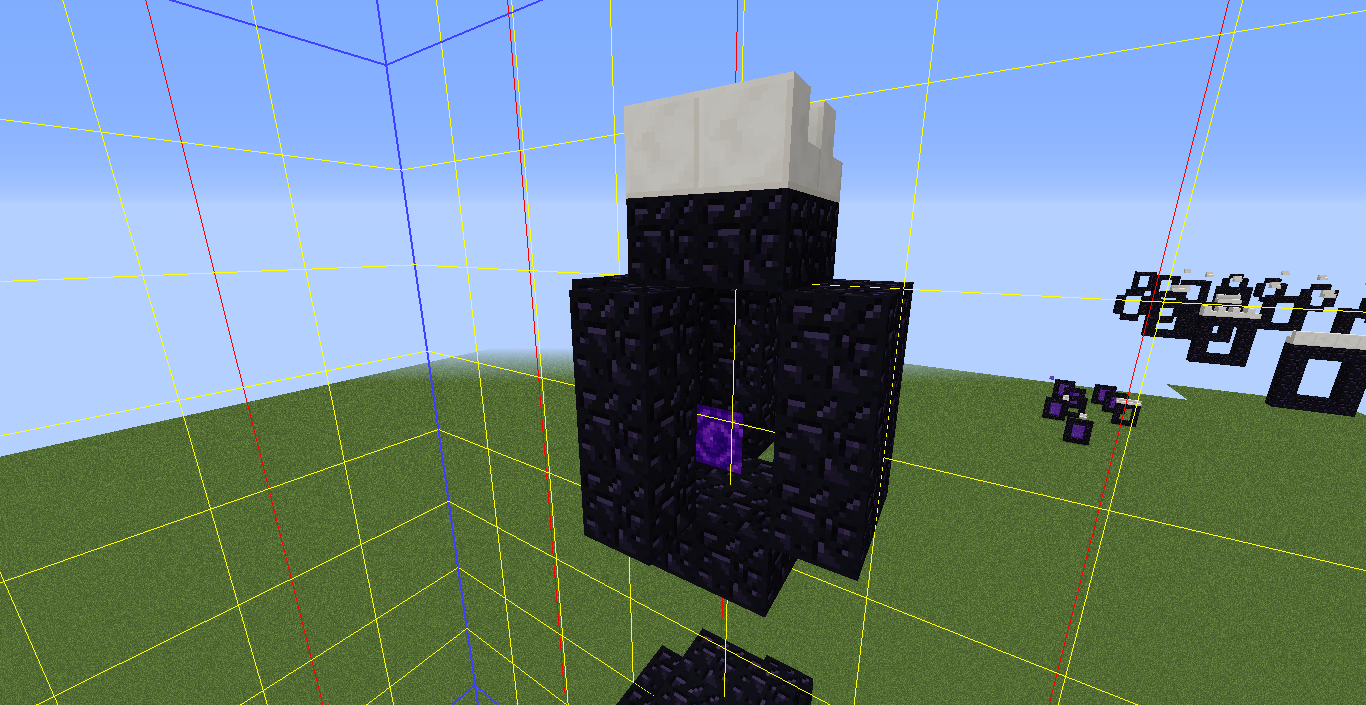

- Portals over chunk borders can be partially deleted:

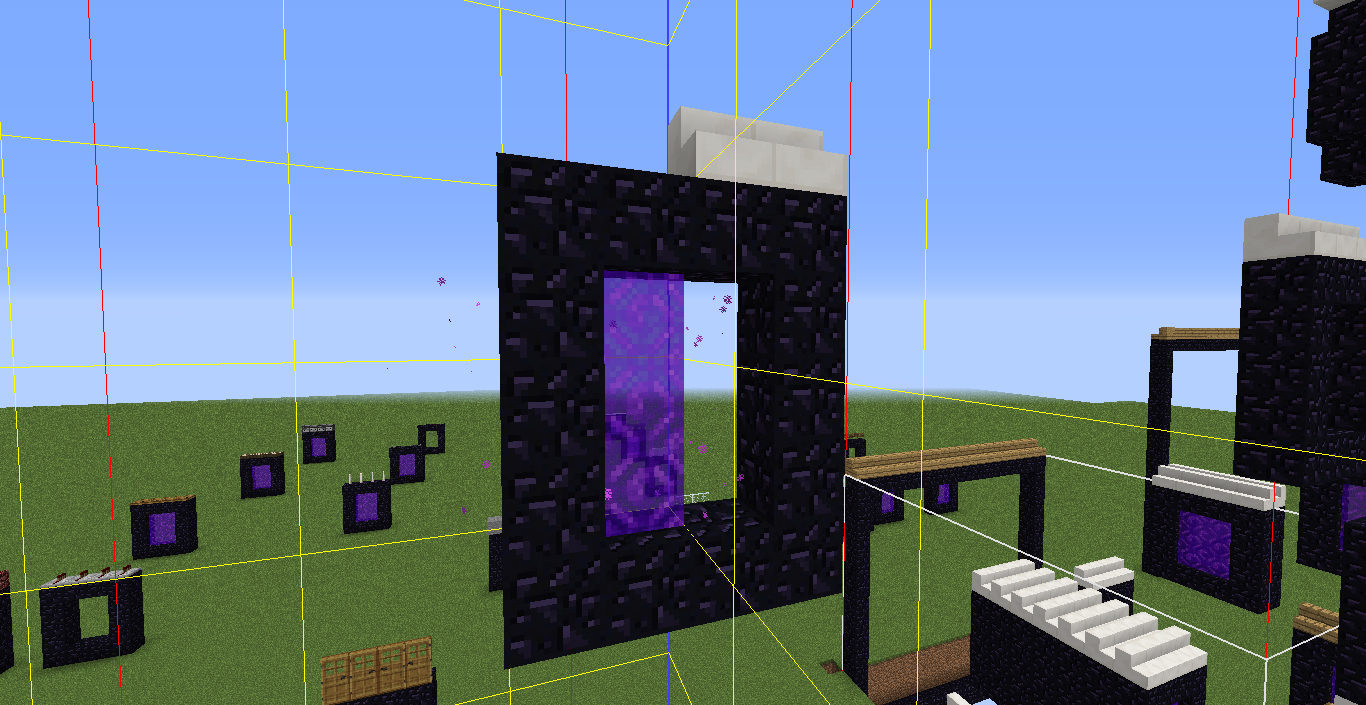

- Portals that are partially valid in one direction but not in another can end up as a single block:
- Portals that are valid in either direction are not affected at all (but of course you can't enter these):
- If you stand in the portal's location in 1.12.2 (possible by entering the nether and then returning), and then update to 1.13, then you will be teleported to the nether on world load (due to creative instant teleportation). However, upon returning, the portal will be gone.
(Partial) code analysis
The portals appear to decay because they are updated with a facing of down, and the portal code isn't written to support that anymore. In 1.12.2 BlockPortal.neighborChanged looked like this:
public void neighborChanged(IBlockState state, World worldIn, BlockPos pos, Block blockIn, BlockPos fromPos) { EnumFacing.Axis enumfacing$axis = (EnumFacing.Axis)state.getValue(AXIS); if (enumfacing$axis == EnumFacing.Axis.X) { BlockPortal.Size blockportal$size = new BlockPortal.Size(worldIn, pos, EnumFacing.Axis.X); if (!blockportal$size.isValid() || blockportal$size.portalBlockCount < blockportal$size.width * blockportal$size.height) { worldIn.setBlockState(pos, Blocks.AIR.getDefaultState()); } } else if (enumfacing$axis == EnumFacing.Axis.Z) { BlockPortal.Size blockportal$size1 = new BlockPortal.Size(worldIn, pos, EnumFacing.Axis.Z); if (!blockportal$size1.isValid() || blockportal$size1.portalBlockCount < blockportal$size1.width * blockportal$size1.height) { worldIn.setBlockState(pos, Blocks.AIR.getDefaultState()); } } }
However, now, it is this (using forge's experimental MCPConfig mappings):
public IBlockState func_196271_a(IBlockState p_196271_1_, EnumFacing p_196271_2_, IBlockState p_196271_3_, IWorld p_196271_4_, BlockPos p_196271_5_, BlockPos p_196271_6_) { EnumFacing.Axis enumfacing$axis = p_196271_2_.getAxis(); if (p_196271_3_.getBlock() != this && !enumfacing$axis.isHorizontal() || p_196271_1_.getValue(AXIS) == enumfacing$axis) { BlockPortal.Size blockportal$size = new BlockPortal.Size(p_196271_4_, p_196271_5_, enumfacing$axis); if (!blockportal$size.isValid() || !blockportal$size.func_196899_f()) { return Blocks.AIR.getDefaultState(); } } return super.func_196271_a(p_196271_1_, p_196271_2_, p_196271_3_, p_196271_4_, p_196271_5_, p_196271_6_); }
If an UP or DOWN facing got passed into this, then the Y axis will be used to construct the BlockPortal$Size. And that contains this code:
public Size(World worldIn, BlockPos p_i45694_2_, EnumFacing.Axis p_i45694_3_) { this.world = worldIn; this.axis = p_i45694_3_; if (p_i45694_3_ == EnumFacing.Axis.X) { this.leftDir = EnumFacing.EAST; this.rightDir = EnumFacing.WEST; } else { this.leftDir = EnumFacing.NORTH; this.rightDir = EnumFacing.SOUTH; } // ... continues ... }
If a Y axis gets into here, the portal thinks it is a Z-axis portal, and that causes X-axis portals to break. In 1.12.2, this wouldn't have happened, as it neighborChanged only checks for X and Z, but in 1.13 it's been generalized to either use any axis and just check if it matches... or if it's vertical (written as not horizontal). I'm not entirely sure why the !enumfacing$axis.isHorizontal() is present, and if that were removed this issue probably wouldn't happen. Or, use the axis in the state instead of the calculated one... though updating the portal randomly still isn't good.
But, normally, it shouldn't be possible to get a vertical update except for when the portal is already decaying (though in that case I'm not sure if this method is used), but somehow it happens here. The actual cause of this update is that of MC-128512, but it's not clear why that happens specifically. I have captured some stacktraces in a debugger, though.
Call stacks
Obtained via JDB.
Obf, as found in 18w15a:
> stop at bct:109 Set breakpoint bct:109 > Breakpoint hit: "thread=Server thread", bct.a(), line=109 bci=0 Server thread[1] where [1] bct.a (SourceFile:109) [2] bhj.a (SourceFile:244) [3] bjc$b$1.a (SourceFile:210) [4] bjc.a (SourceFile:155) [5] bjc.a (SourceFile:147) [6] bjc.a (SourceFile:58) [7] biv.B (SourceFile:1,043) [8] biv$$Lambda$905.848302274.run (null) [9] java.util.concurrent.Executors$RunnableAdapter.call (Executors.java:511) [10] java.util.concurrent.FutureTask.run (FutureTask.java:266) [11] k.a (SourceFile:146) [12] net.minecraft.server.MinecraftServer.w (SourceFile:671) [13] net.minecraft.server.MinecraftServer.v (SourceFile:627) [14] dal.v (SourceFile:155) [15] net.minecraft.server.MinecraftServer.run (SourceFile:532) [16] java.lang.Thread.run (Thread.java:748)
And as found in 18w14b:
> stop at bcj:109 Set breakpoint bcj:109 > Breakpoint hit: "thread=WorldGen-Worker-3", bcj.a(), line=109 bci=0 WorldGen-Worker-3[1] where [1] bcj.a (SourceFile:109) [2] bgy.a (SourceFile:244) [3] bir$b$1.a (SourceFile:210) [4] bir.a (SourceFile:155) [5] bir.a (SourceFile:147) [6] bir.a (SourceFile:58) [7] bik.B (SourceFile:1,044) [8] bik.G (SourceFile:1,148) [9] se.a (SourceFile:33) [10] se.put (SourceFile:11) [11] it.unimi.dsi.fastutil.longs.Long2ObjectMaps$SynchronizedMap.put (Long2ObjectMaps.java:371) [12] sg.a (SourceFile:207) [13] sg$$Lambda$937.1969878285.apply (null) [14] java.util.concurrent.CompletableFuture.uniApply (CompletableFuture.java:602) [15] java.util.concurrent.CompletableFuture$UniApply.tryFire (CompletableFuture.java:577) [16] java.util.concurrent.CompletableFuture.postComplete (CompletableFuture.java:474) [17] java.util.concurrent.CompletableFuture.postFire (CompletableFuture.java:561) [18] java.util.concurrent.CompletableFuture$UniCompose.tryFire (CompletableFuture.java:929) [19] java.util.concurrent.CompletableFuture$Completion.exec (CompletableFuture.java:443) [20] java.util.concurrent.ForkJoinTask.doExec (ForkJoinTask.java:289) [21] java.util.concurrent.ForkJoinPool$WorkQueue.runTask (ForkJoinPool.java:1,056) [22] java.util.concurrent.ForkJoinPool.runWorker (ForkJoinPool.java:1,692) [23] java.util.concurrent.ForkJoinWorkerThread.run (ForkJoinWorkerThread.java:157)
An example of the parameters in the portal update method: minecraft:portal[axis=x], down, minecraft:obsidian, net.minecraft.world.WorldServer@77c2b4b9, MutableBlockPos(x=-279, y=7, z=-352), MutableBlockPos(x=-279, y=6, z=-352).
I think this is caused by MC-128512.
