MCPE-173812RTX/Ray tracing does not work properly on ultrawide displays
Running Minecraft Bedrock at close to 21:9 Aspect Ratio with RTX gives me major artificing and screen corruption with only half the screen rendering.
I have screenshots uploaded highlighting the issue. In Windowed mode I was able to get Minecraft running at about 2:3rds of the width of the screen. But you can see that when I widen the window from that point, the visuals break; only half the screen is rendered, with broken clouds, vertical slices, smearing and other artifacting. This happened in all RTX texture packs I could test.

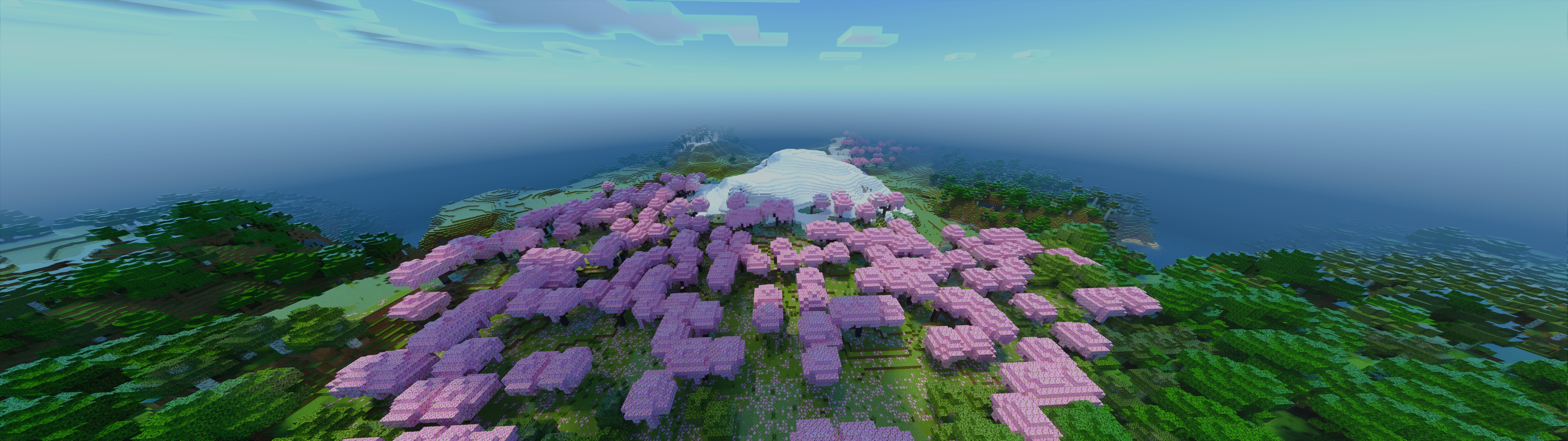

As wide as I could manage before the issue occurred^

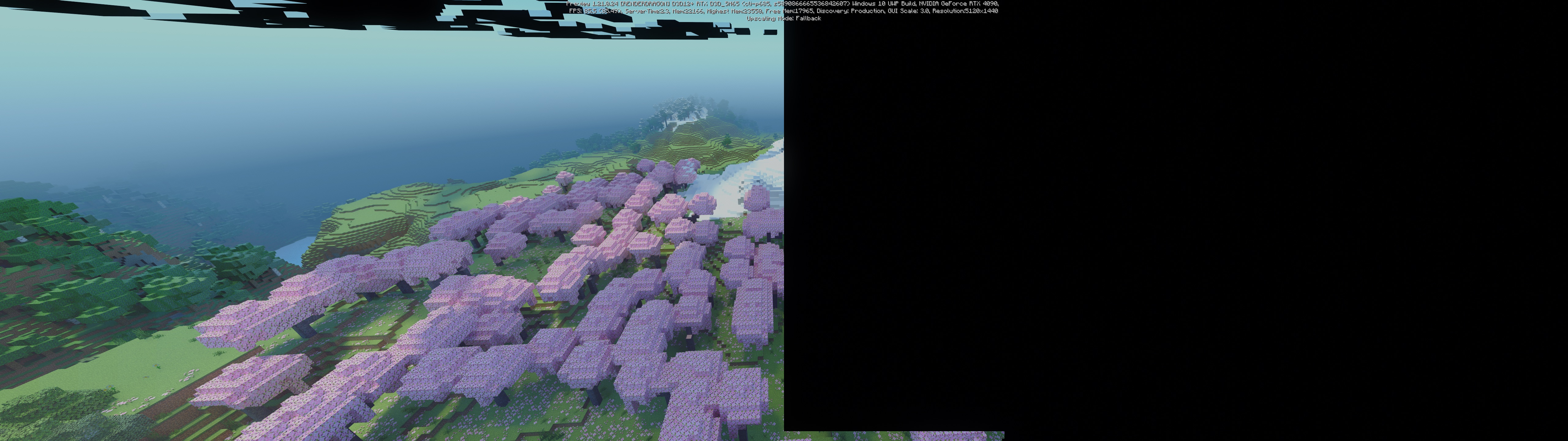

A Fraction Wider Screen^ - Obvious rendering issues and smearing - Unplayable

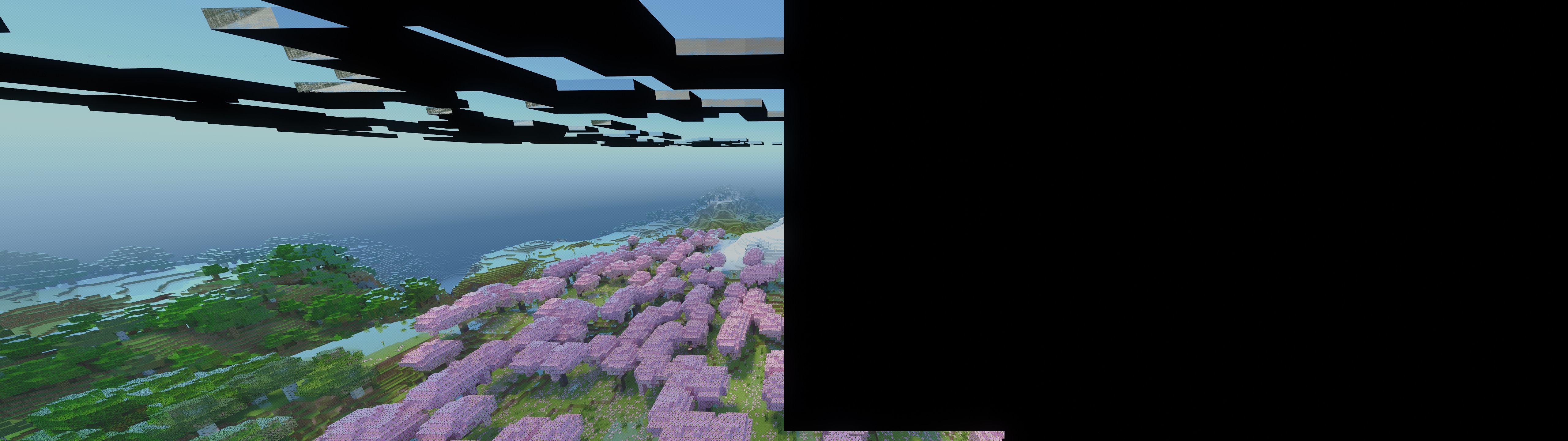

Full Screen^ - Obvious rendering issues and smearing - Unplayable

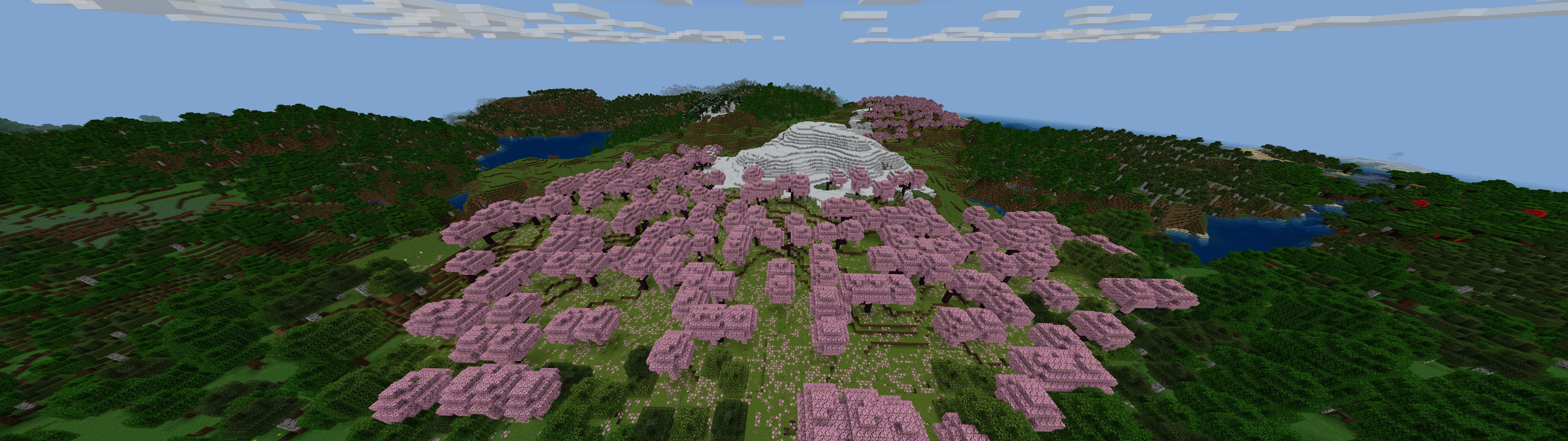

Full Screen^ - Without RTX
My Monitor is: LG 40WP95C-W
Fullscreen Resolution: 5120 x 2160
CPU: Ryzen 7950x
GPU: Radeon 7900 XTX
Ram: 64gb
Graphics Driver: 23.7.2 with S.A.M. Enabled
Attachments14
Created Issue:
RTX Rendering Corruption on UltraWide Display
Running Minecraft Bedrock at close to 21:9 Aspect Ratio with RTX gives me major artificing and screen corruption with only half the screen rendering.
I have screenshots uploaded highlighting the issue. In Windowed mode I was able to get Minecraft running at about 2:3rds of the width of the screen. But you can see that when I widen the window from that point, the visuals break; only half the screen is rendered, with broken clouds, vertical slices, smearing and other artifacting.
My Monitor is: LG 40WP95C-W
CPU: Ryzen 7950x
GPU: Radeon 7900 XTX
Ram: 64gb
Graphics Driver: 23.7.2 with S.A.M. Enabled
Attachments5
- Unresolved
- Open
- Unconfirmed
- Windows
- Windows 11 Pro 22H2
- 1.20.12 Hotfix
Running Minecraft Bedrock at close to 21:9 Aspect Ratio with RTX gives me major artificing and screen corruption with only half the screen rendering.
I have screenshots uploaded highlighting the issue. In Windowed mode I was able to get Minecraft running at about 2:3rds of the width of the screen. But you can see that when I widen the window from that point, the visuals break; only half the screen is rendered, with broken clouds, vertical slices, smearing and other artifacting. This happened in all RTX texture packs I could test
My Monitor is: LG 40WP95C-W
CPU: Ryzen 7950x
GPU: Radeon 7900 XTX
Ram: 64gb
Graphics Driver: 23.7.2 with S.A.M. Enabled
Running Minecraft Bedrock at close to 21:9 Aspect Ratio with RTX gives me major artificing and screen corruption with only half the screen rendering.
I have screenshots uploaded highlighting the issue. In Windowed mode I was able to get Minecraft running at about 2:3rds of the width of the screen. But you can see that when I widen the window from that point, the visuals break; only half the screen is rendered, with broken clouds, vertical slices, smearing and other artifacting. This happened in all RTX texture packs I could test.
As wide as I could manage before the issue occurred^
A Fraction Wider Screen^ - Obvious rendering issues and smearing - Unplayable
Full Screen^ - Obvious rendering issues and smearing - Unplayable
My Monitor is: LG 40WP95C-W
CPU: Ryzen 7950x
GPU: Radeon 7900 XTX
Ram: 64gb
Graphics Driver: 23.7.2 with S.A.M. Enabled
Running Minecraft Bedrock at close to 21:9 Aspect Ratio with RTX gives me major artificing and screen corruption with only half the screen rendering.
I have screenshots uploaded highlighting the issue. In Windowed mode I was able to get Minecraft running at about 2:3rds of the width of the screen. But you can see that when I widen the window from that point, the visuals break; only half the screen is rendered, with broken clouds, vertical slices, smearing and other artifacting. This happened in all RTX texture packs I could test.
As wide as I could manage before the issue occurred^
A Fraction Wider Screen^ - Obvious rendering issues and smearing - Unplayable
Full Screen^ - Obvious rendering issues and smearing - Unplayable
Full Screen^ - Without RTX
My Monitor is: LG 40WP95C-W
CPU: Ryzen 7950x
GPU: Radeon 7900 XTX
Ram: 64gb
Graphics Driver: 23.7.2 with S.A.M. Enabled
Running Minecraft Bedrock at close to 21:9 Aspect Ratio with RTX gives me major artificing and screen corruption with only half the screen rendering.
I have screenshots uploaded highlighting the issue. In Windowed mode I was able to get Minecraft running at about 2:3rds of the width of the screen. But you can see that when I widen the window from that point, the visuals break; only half the screen is rendered, with broken clouds, vertical slices, smearing and other artifacting. This happened in all RTX texture packs I could test.
As wide as I could manage before the issue occurred^
A Fraction Wider Screen^ - Obvious rendering issues and smearing - Unplayable
Full Screen^ - Obvious rendering issues and smearing - Unplayable
Full Screen^ - Without RTX
My Monitor is: LG 40WP95C-W
CPU: Ryzen 7950x
GPU: Radeon 7900 XTX
Ram: 64gb
Graphics Driver: 23.7.2 with S.A.M. Enabled
Running Minecraft Bedrock at close to 21:9 Aspect Ratio with RTX gives me major artificing and screen corruption with only half the screen rendering.
I have screenshots uploaded highlighting the issue. In Windowed mode I was able to get Minecraft running at about 2:3rds of the width of the screen. But you can see that when I widen the window from that point, the visuals break; only half the screen is rendered, with broken clouds, vertical slices, smearing and other artifacting. This happened in all RTX texture packs I could test.
As wide as I could manage before the issue occurred^
A Fraction Wider Screen^ - Obvious rendering issues and smearing - Unplayable
Full Screen^ - Obvious rendering issues and smearing - Unplayable
Full Screen^ - Without RTX
My Monitor is: LG 40WP95C-W
CPU: Ryzen 7950x
GPU: Radeon 7900 XTX
Ram: 64gb
Graphics Driver: 23.7.2 with S.A.M. Enabled
Running Minecraft Bedrock at close to 21:9 Aspect Ratio with RTX gives me major artificing and screen corruption with only half the screen rendering.
I have screenshots uploaded highlighting the issue. In Windowed mode I was able to get Minecraft running at about 2:3rds of the width of the screen. But you can see that when I widen the window from that point, the visuals break; only half the screen is rendered, with broken clouds, vertical slices, smearing and other artifacting. This happened in all RTX texture packs I could test.
As wide as I could manage before the issue occurred^
A Fraction Wider Screen^ - Obvious rendering issues and smearing - Unplayable
Full Screen^ - Obvious rendering issues and smearing - Unplayable
Full Screen^ - Without RTX
My Monitor is: LG 40WP95C-W
Fullscreen Resolution: 5120 x 2160
CPU: Ryzen 7950x
GPU: Radeon 7900 XTX
Ram: 64gb
Graphics Driver: 23.7.2 with S.A.M. Enabled
Ray Tracing RTX Rendering Corruption on PC UltraWide Display
This is still an issue on release version 1.20.81 and preview version 1.21.0.24. When the rendering resolution is above 3840 pixels horizontally, RTX glitches out with blurry motion, black artifacting, and half the screen going black. When upscaling is enabled, this issue goes away because the internal rendering resolution drops below 3840 pixels horizontally.
Here are screenshots of the issue in the current release version:
1.20.81: RTX Disabled, Full Resolution

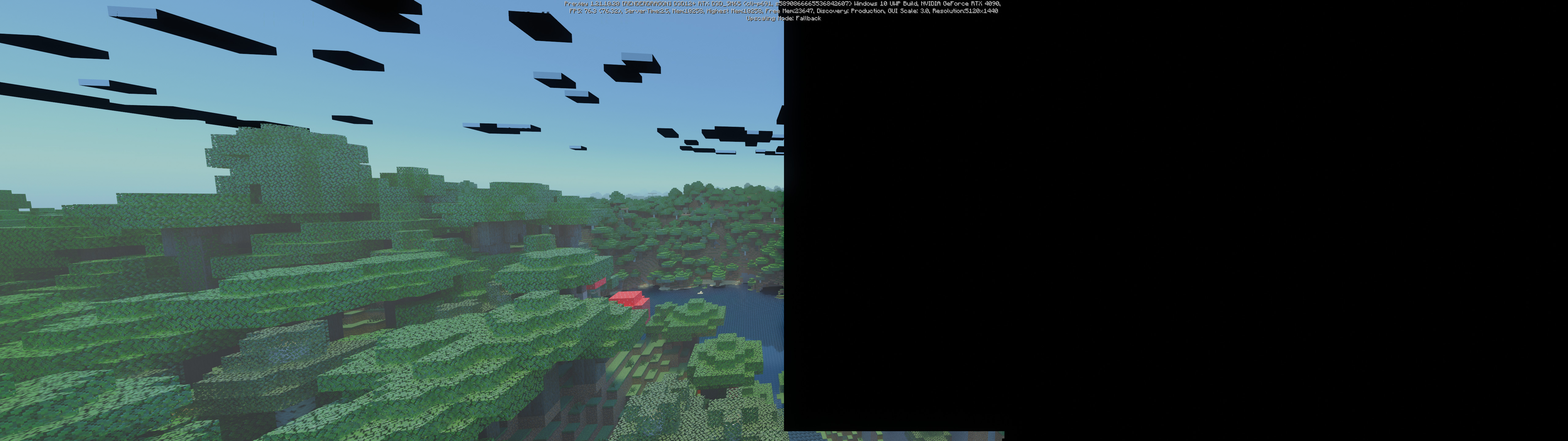

1.20.81: RTX Enabled, Full Resolution
1.20.81: RTX Enabled, Upscaling
Here are screenshots of the issue in the current preview version:
1.21.0.24: RTX Disabled, Full Resolution
1.21.0.24: RTX Enabled, Full Resolution
1.21.0.24: RTX Enabled, Upscaling
![[Mod] OcelotOnesie](../../../data/avatars/users/43220.png){kind=small}
![[Mod] Jarl-Penguin](../../../data/avatars/users/92849.png){kind=small}
RayTracingRTX Rendering Corruption on PC UltraWideDisplayRTX/Ray tracing does not work properly on ultrawide displays
Possibly related to MCPE-104207
I did some digging and I think there is a hard resolution cap for the RTX implementation in Minecraft at 4k, which then breaks when the resolution is over 4k (3840 x 2160).
So that sucks
Can confirm that this issue is still present on release version 1.20.74 and preview version 1.21.0.21. When playing with a horizontal resolution greater than 3840 pixels half the screen goes black and there are a variety of visual artifacts. Enabling upscaling or lowering the desktop resolution to something below 3840 pixels horizontal will fix the black artifacts.
This is still an issue on release version 1.20.81 and preview version 1.21.0.24. When the rendering resolution is above 3840 pixels horizontally, RTX glitches out with blurry motion, black artifacting, and half the screen going black. When upscaling is enabled, this issue goes away because the internal rendering resolution drops below 3840 pixels horizontally.
Here are screenshots of the issue in the current release version:
1.20.81: RTX Disabled, Full Resolution
1.20.81: RTX Enabled, Full Resolution
1.20.81: RTX Enabled, Upscaling
Here are screenshots of the issue in the current preview version:
1.21.0.24: RTX Disabled, Full Resolution
1.21.0.24: RTX Enabled, Full Resolution
1.21.0.24: RTX Enabled, Upscaling
Sill an issue on Preview Version 1.21.10.20
Still an issue on Preview Version 1.21.20.22
Still affects all of the latest Minecraft releases (Nov 2024)
This bug doesn't seem to be dependent on the GPU brand (AMD, Nvidia or Intel)
