Flower pots and potted objects have very poorly optimized models and strange texture mapping
This is a merge of MC-262427 and MC-262433 as requested by [Mojang] Maxime Lebrot in the comments of the latter.
Here is the latest revision of the resource pack to fix this: reworked-pot-models-and-texture-25w02a-v1.0.zip
The bug
The models for flower pots, as well as the models for objects inside of flower pots, are very poorly made:
- The shape is defined in a very wasteful way; currently the flower pot model itself uses 22 quads to define its mesh, but a visually identical result can be achieved using just 11 quads (similarly to how it was rendered prior to release 1.8).
- The texture mapping on the pot itself is also not done very well - the side texture shares a row of pixels with the top texture, and the bottom texture uses two planes to create a weird hodgepodge of the rim and side. It is extremely difficult to create a good texture for flower pots without outright replacing the model file.
It is possible to completely solve both of these problems simply by reworking the flower pot texture and the affected models.
How to reproduce
This concerns reproducing the render lag.
- Download the attached resource pack
- Set your render distance to 16 chunks
- Create this superflat world:
100*minecraft:flower_pot;minecraft:the_void
- Enter flying mode
/tp @s 0 64 0 0 90

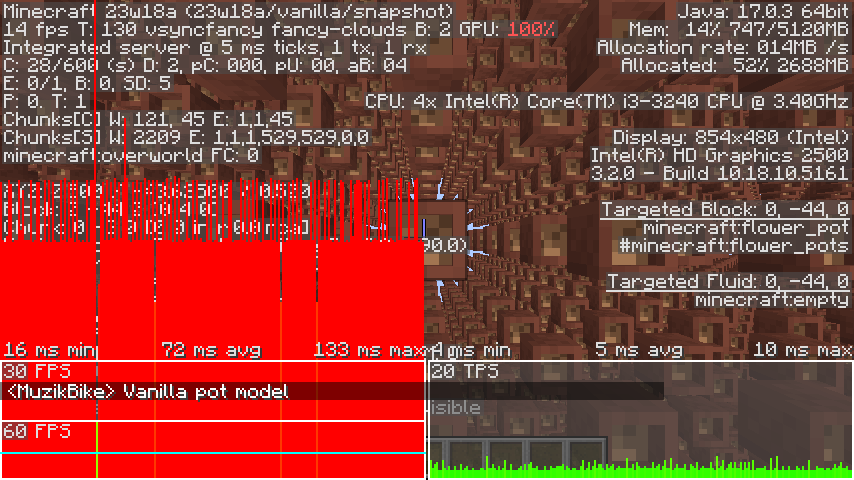

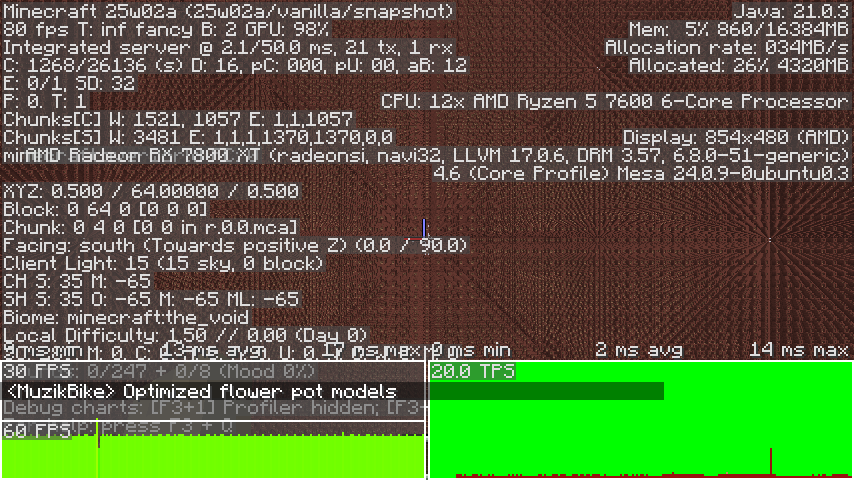

- Compare performance with and without the resource pack using F3+2
Expected results
Flower pots would be optimal in vanilla already.
Actual results
We get much less lag with the resource pack, even though the pots ultimately look no different (MC-246224) aside.
How to fix
The fix should be simple:
- replace vanilla's current model files with the model files in the attached resource pack
- replace vanilla's flower pot texture with the texture provided in the resource pack
- replace Programmer Art's flower pot texture with the texture attached:
Further notes
Why are flower pots like this, anyway?
In release 1.4, when flower pots were implemented, their model system was just about optimal. However, when blocks were converted over to using data-driven models in 1.8, the model that flower pots were made to use was of an inferior quality, a fate shared by many other blocks such as cauldrons. Two of the outer areas of the pot use a cuboid of six sides, and the other two use four, which already gets us 20 planes. The dirt is another plane, and the bottom texture to plug the gap is another, getting us up to the 22-faced mess we have today.
Notably, the top face now uses four texture planes to define the outer rim, even though it previously only used one before 1.8. Any retexturing of the inner area of the rim texture will not be visible in vanilla's current model.
And what's up with the mapping on the bottom?
Up until 1.13, block placement rules were far more restrictive. Flower pots required a supporting block, and could not be placed on a visually transparent block such as glass. So the bottom was never visible in normal gameplay.
When these placement rules were relaxed, it was noted that the mapping on the bottom was incorrect, and that an empty area of the texture was mapped to this area instead. This was eventually fixed in 1.16 (MC-120335, MC-170842), however only the model file was changed to fix this, and the texture was left completely untouched despite there not being a dedicated "bottom" part. This means that the bottom "texture" is actually a weird combination of the top texture and side texture, and cannot be changed independently of either of them. The potted cactus model doesn't even use it currectly anymore (MC-194192).
How is the mapping fixed?
We have enough space in a 16x16 texture file to fit a dedicated "rim" texture, a dedicated "side" texture, a dedicated "inside" texture and a dedicated "bottom" texture - so that's what I've done here. All of the potted object models have been updated to match it. This means that we can also make potted cactus's bottom look correct without needing to waste an extra plane on it. The outcomes, besides the fix for potted cactus, and ignoring clipping inside of the pots, should be 100% visually identical to how flower pots already look in-game; MC-246224 may cause discrepancies, but these are unnoticeable in most cases even if you're actively looking for them.
Since the new format will break any existing textures for flower pots, here's the new specification, and how to update an existing texture file to match it:
- The top-left 6x6 region is for the top texture of the flower pot, so move the middle 6x6 region to the top left.
- The bottom-left 6x6 region is for the side texture of the flower pot. Move the bottom-middle 6x6 region of the old texture to this quadrant. (The top row of pixels should be a duplicate of the bottom row of pixels for the top texture.)
- The top-right 6x6 region is for the inside of the flower pot. By default, this visually duplicates the outside, so you can copy that region to here.
- The bottom-right 6x6 region is for the bottom of the flower pot. Resource pack creators will probably want to create their own bottom texture, but if the previous appearance is desired it can be recreated by placing the top texture here, and filling in its central 4x4 gap with the bottom-middle 4x4 region of the side texture.
Linked Issues
is duplicated by1
relates to15
MC-262452Hopper models are unoptimized and cause rendering lag
NormalMC-262461Stair models are unoptimized and can cause rendering lagNormalMC-262470Cauldron models are very unoptimized, causing render lagNormalMC-262527Item frame models are quite unoptimizedNormalMC-267127Composter model is unoptimized, causing extra rendering lagConfirmedMC-252693Huge FPS drop in areas with a lot of honey blocks and slime blocksWon't FixMC-260296Pink petal block models are not optimizedFixedMC-262652Dragon egg's side texture is mapped strangely as of 1.8 (and the model is also unoptimized)FixedMC-262641Chorus flower models are incredibly unoptimized and cause serious rendering lagNormalMC-262689Hanging mangrove propagule models are comically unoptimizedNormalMC-262953Fence gate models are very unoptimized, causing lag among other issuesConfirmedMC-267281Fence multipart model system performance optimizationNormalMC-267315Rendering performance optimization for glass pane modelsNormalMC-267864Two-tall plant model/rendering not optimizedNormalMC-279350Leaf litter multipart model system is unoptimized, causing render lag
LowAttachments7
Created Issue:
Flower pot models are very unoptimised and have flawed texture mapping
The bug
The model for flower pots (and by extension, the models for potted objects) are notably more convoluted than they need to be. This results in two seemingly unrelated, but fundamentally linked, issues:
- Flower pots are considerably more taxing to render, and can cause render lag if many are present (see also
MC-260296)- The texture mapping on flower pots is rather unintuitive, especially on the bottom
Optimisation
The current vanilla flower pot model, as of 23w18a and 1.19.4, uses five elements/cuboids: one uses the dirt texture on the top and the outside texture on the bottom, whereas the other four represent different edges of the pot. However, across those five elements, there are a total of 22 faces, which is less than optimal: many of these faces (specifically the outsides of the pot and the bottom) are coplanar with each other, appearing to be single faces when in fact they are composed of multiple. We can do better.
The resource pack attached to this issue achieves the exact same visual result with five elements, with 14 faces rather than 22. This is a considerable reduction (both in render lag and file size), and you can feel it.
How to reproduce
- Download the attached resource pack containing the optimized flower pot models
- Create a superflat world with the following preset:
minecraft:barrier,20*minecraft:flower_pot;minecraft:the_void- Open the FPS bars using Alt+F3
- Compare where the FPS graph evens out with the vanilla flower pot model vs. the optimized flower pot model - the optimized flower pot will give better FPS
Texture mapping
The other major issue with the flower pot model is how the textures are applied to the block. The flower pot block texture, since their introduction in 1.4.2, has only ever had textures for the top and side - the bottom was never normally visible until 1.13, so a texture plane on the bottom was largely disregarded. In 1.16, the bug arising from this (
MC-120335,MC-170842) was fixed, however the actual texture file for the flower pot remained unchanged. As a result, the bottom "texture" is effectively a random mishmash of parts of the top and side texture from different elements of the model, and isn't consistent between different potted plants either as a result (MC-194192).This issue is a fairly easy fix - there's enough space within a 16x16 texture file to accommodate textures for individual top, side and bottom textures, although things will need to be shuffled around to fit. The attached resource pack contains a texture file for flower pots with defined top, side and bottom regions, and a Programmer Art version of this texture is also attached to this issue separately. The bottom texture has been made to visually match the current bottom "texture" perfectly in both cases.
Info for resource pack creators
As this new texture format will break compatibility with any previously created custom textures for flower pots, here is a brief explanation of the new format and a rough guide to how to convert existing textures to this format.
The new texture layout is composed of four 6x6 quadrants.
- The top-left 6x6 region is for the top texture of the flower pot, so move the middle 6x6 region to the top left.
- The bottom-left 6x6 region is for the side texture of the flower pot. Move the bottom-middle 6x6 region of the old texture to this quadrant. (The top row of pixels should be a duplicate of the bottom row of pixels for the top texture.)
- The top-right 6x6 region is for the inside of the flower pot. By default, this visually duplicates the outside, so you can copy that region to here.
- The bottom-right 6x6 region is for the bottom of the flower pot. Resource pack creators will probably want to create their own bottom texture, but if the previous appearance is desired it can be recreated by placing the top texture here, and filling in its central 4x4 gap with the bottom-middle 4x4 region of the side texture.
How to fix
I've done all of the hard work here to my knowledge - all that needs done is for the flower pot block texture to be replaced with the new texture from the resource pack, for all of the models (flower_pot.json, flower_pot_cross.json, potted_bamboo.json, potted_cactus.json, potted_mangrove_propagule.json, template_potted_azalea_bush.json, tinted_flower_pot_cross.json) to be replaced with the versions in the attached resource pack, and for Programmer Art's flower pot texture to also be replaced with the attached updated version of the texture.
If permission of some sort is required to have these models and textures implemented into the vanilla game, consider it granted (if this is not possible, then we can discuss this in the comments of this ticket).
Further notes
There may be other optimizations that can be made to flower pots and potted objects - I will discuss these in future tickets as to not overload this one and risk making it confusing.
Attachments4
The bug
The model for flower pots (and by extension, the models for potted objects) are notably more convoluted than they need to be. This results in two seemingly unrelated, but fundamentally linked, issues:
- Flower pots are considerably more taxing to render, and can cause render lag if many are present (see also
MC-260296)- The texture mapping on flower pots is rather unintuitive, especially on the bottom
Optimisation
The current vanilla flower pot model, as of 23w18a and 1.19.4, uses five elements/cuboids: one uses the dirt texture on the top and the outside texture on the bottom, whereas the other four represent different edges of the pot. However, across those five elements, there are a total of 22 faces, which is less than optimal: many of these faces (specifically the outsides of the pot and the bottom) are coplanar with each other, appearing to be single faces when in fact they are composed of multiple. We can do better.
The resource pack attached to this issue achieves the exact same visual result with five elements, with 14 faces rather than 22. This is a considerable reduction (both in render lag and file size), and you can feel it.
How to reproduce
- Download the attached resource pack containing the optimized flower pot models
- Create a superflat world with the following preset:
minecraft:barrier,20*minecraft:flower_pot;minecraft:the_void- Set render distance to 2 and simulation distance to 5
- Open the FPS bars using Alt+F3
- Compare where the FPS graph evens out with the vanilla flower pot model vs. the optimized flower pot model - the optimized flower pot will give better FPS
Texture mapping
The other major issue with the flower pot model is how the textures are applied to the block. The flower pot block texture, since their introduction in 1.4.2, has only ever had textures for the top and side - the bottom was never normally visible until 1.13, so a texture plane on the bottom was largely disregarded. In 1.16, the bug arising from this (
MC-120335,MC-170842) was fixed, however the actual texture file for the flower pot remained unchanged. As a result, the bottom "texture" is effectively a random mishmash of parts of the top and side texture from different elements of the model, and isn't consistent between different potted plants either as a result (MC-194192).This issue is a fairly easy fix - there's enough space within a 16x16 texture file to accommodate textures for individual top, side and bottom textures, although things will need to be shuffled around to fit. The attached resource pack contains a texture file for flower pots with defined top, side and bottom regions, and a Programmer Art version of this texture is also attached to this issue separately. The bottom texture has been made to visually match the current bottom "texture" perfectly in both cases.
I've tested this model thoroughly using multiple texture resolutions and can confirm it is absolutely visually identical to the model currently used in vanilla - any visual differences are either only visible by clipping inside of the pot in Spectator mode or by other means, or are a result of precision issues such as
MC-246224.Info for resource pack creators
As this new texture format will break compatibility with any previously created custom textures for flower pots, here is a brief explanation of the new format and a rough guide to how to convert existing textures to this format.
The new texture layout is composed of four 6x6 quadrants.
- The top-left 6x6 region is for the top texture of the flower pot, so move the middle 6x6 region to the top left.
- The bottom-left 6x6 region is for the side texture of the flower pot. Move the bottom-middle 6x6 region of the old texture to this quadrant. (The top row of pixels should be a duplicate of the bottom row of pixels for the top texture.)
- The top-right 6x6 region is for the inside of the flower pot. By default, this visually duplicates the outside, so you can copy that region to here.
- The bottom-right 6x6 region is for the bottom of the flower pot. Resource pack creators will probably want to create their own bottom texture, but if the previous appearance is desired it can be recreated by placing the top texture here, and filling in its central 4x4 gap with the bottom-middle 4x4 region of the side texture.
How to fix
I've done all of the hard work here to my knowledge - all that needs done is for the flower pot block texture to be replaced with the new texture from the resource pack, for all of the models (flower_pot.json, flower_pot_cross.json, potted_bamboo.json, potted_cactus.json, potted_mangrove_propagule.json, template_potted_azalea_bush.json, tinted_flower_pot_cross.json) to be replaced with the versions in the attached resource pack, and for Programmer Art's flower pot texture to also be replaced with the attached updated version of the texture.
If permission of some sort is required to have these models and textures implemented into the vanilla game, consider it granted (if this is not possible, then we can discuss this in the comments of this ticket).
Further notes
There may be other optimizations that can be made to flower pots and potted objects - I will discuss these in future tickets as to not overload this one and risk making it confusing.
